Jigware — Complete Laser Engraving Jig System (Gridfinity-Compatible)

Jigware is a free, open-source, modular jig system for batch laser engraving. Built on the Gridfinity standard, it turns your xTool F2 Ultra (or F1 Ultra) into a batch-production machine.

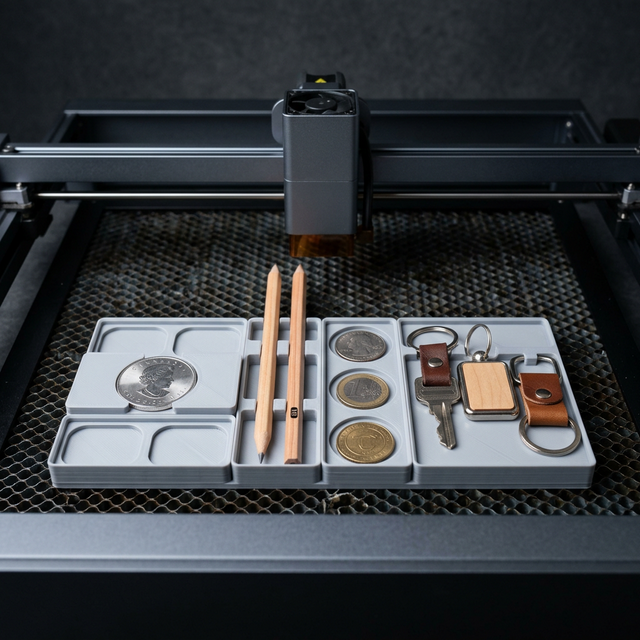

The system includes a Jigware Plate that screws directly into the xTool's stock M4 threaded holes (35mm grid), instantly converting your laser bed into a Gridfinity baseplate. Then simply drop in your chosen jigs — no adhesive, no clamps, just Gridfinity clips.

What's Included

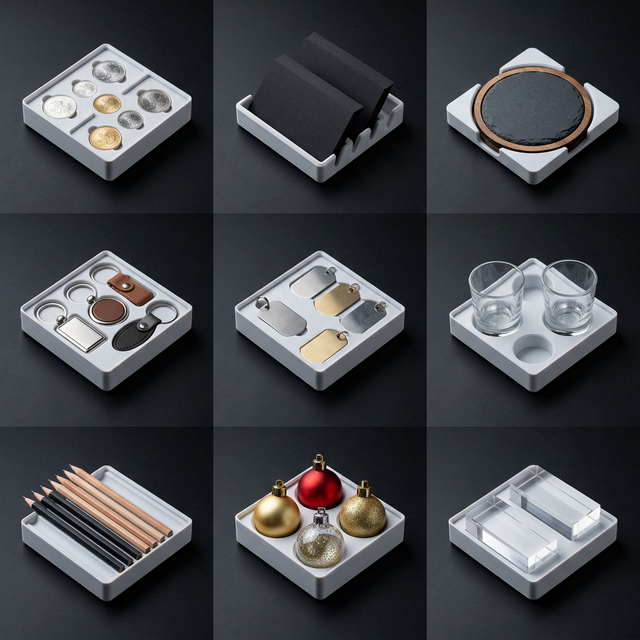

This collection contains 70 jig files across 9 categories:

• 🪙 Coins & Medals — Challenge coins, £2 coins, US half dollars — precision holders for flat round items.
• 💳 Business Cards — UK, US and credit card sized holders for engraving metal and wooden business cards.
• 🍺 Coasters — Round and square coaster jigs for cork, slate and ceramic coasters.
• 🔑 Keychains & Openers — Round, rectangular, leather keychains and bottle openers — batch engrave personalised gifts.
• 🎄 Spheres & Ornaments — Golf balls, table tennis balls, Christmas ornaments — sphere cups that stop round items rolling.
• 🏷️ Dog Tags — Military-standard dog tag holders for personalised tags and pet ID tags.
• 🥃 Drinkware — Shot glass holders for engraving glassware without it rolling or sliding.
• 💎 Crystal Blocks — K9 crystal block holders for UV inner engraving — small and medium sizes.
• ✏️ Pencils & Pens — Hex and round pencil channels — batch engrave a full set without them rolling away.

Compatible Lasers

• ✅ xTool F2 Ultra (fibre + diode)
• ✅ xTool F2 Ultra UV (inner engraving)
• ✅ xTool F1 Ultra

Why Jigware?

• 🎯 Batch production: Pack up to 49 keychains in a single run
• 🔁 Repeatable: Swap batches without re-aligning the laser
• 🧩 Gridfinity-compatible: Works with millions of existing community bins
• 🆓 100% free & open source: Modify, remix, share

Full Guide & More Info

For detailed setup instructions, print settings, item dimensions and customisation tips, visit the full guide at handsonkatie.com/jigware/guide

✅ Free to download and print
✅ Free to modify and remix
✅ Free to share with attribution
✅ Commercial use of engraved items OK

CC BY-SA 4.0 — Attribution-ShareAlike
